Fogstar 64.4kWh Modular Stack LiFePO4 Battery & Inverter Bundle

Description

The largest stack in the range: four 16.1kWh modules and a control unit delivering 64.4kWh of usable storage. This is commercial-grade capacity in a footprint that installs like a domestic system, with IP65 protection for outdoor siting and parallel expansion to 1.23MWh. Pair it with the inverter that matches your supply.

Battery Highlights

• 64.4kWh usable storage from four stacked 16.1kWh modules
• Control unit with 150A SEPLOS Battery Management System
• IP65-rated enclosures for indoor or outdoor installation
• Automatic fire suppression; heated charging to 0°C, operation to -20°C
• Up to 300A charge and discharge current
• JK 2A Active Balancer, LCD touchscreen, CAN and RS485 comms
• Integrated 350A breaker for isolation and protection
• Compatible with Victron, Luxpower, Sunsynk, Solis, Voltronic, Voltacon and more
• Expandable to 1.23MWh; up to 8,000 cycles at 91% depth of discharge
• 6-year warranty with 10 years of UK customer support

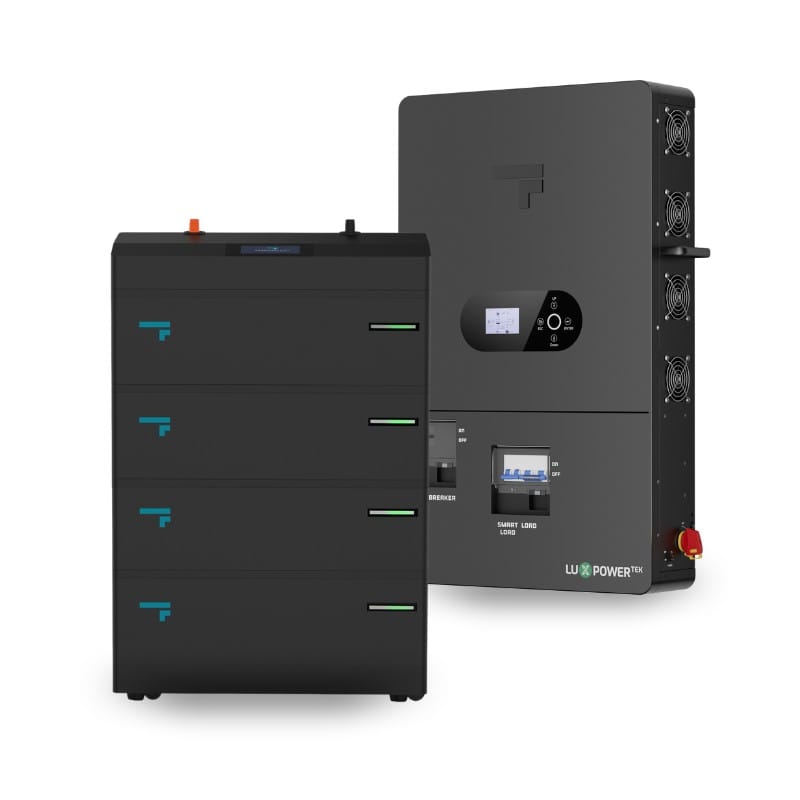

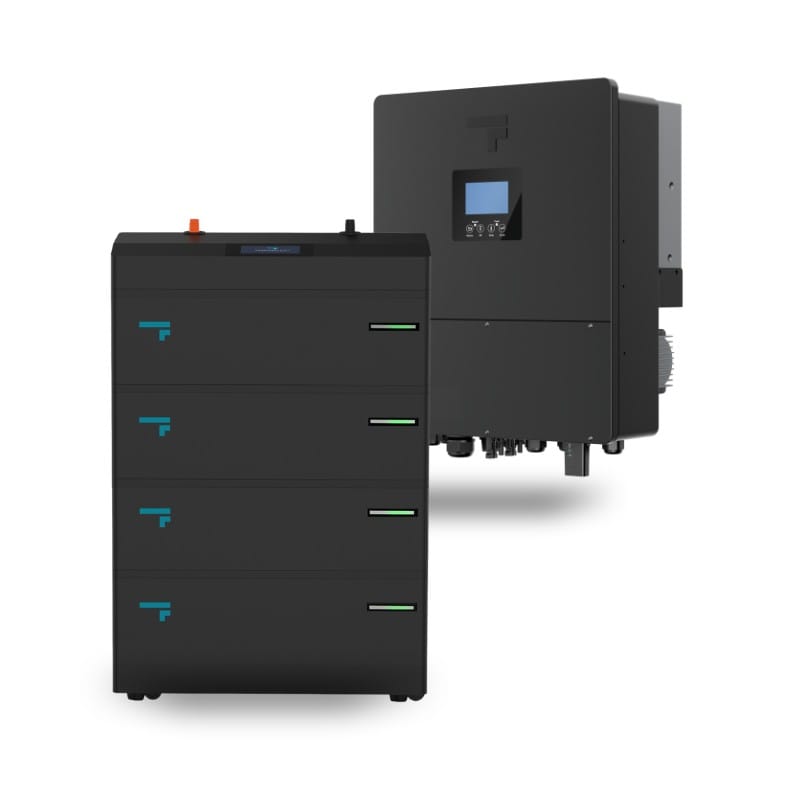

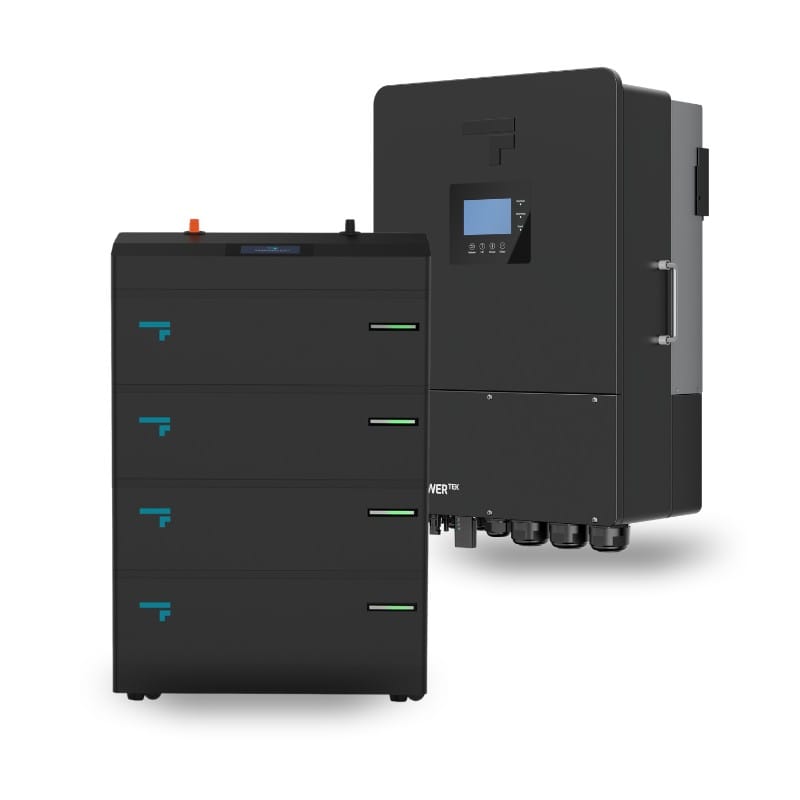

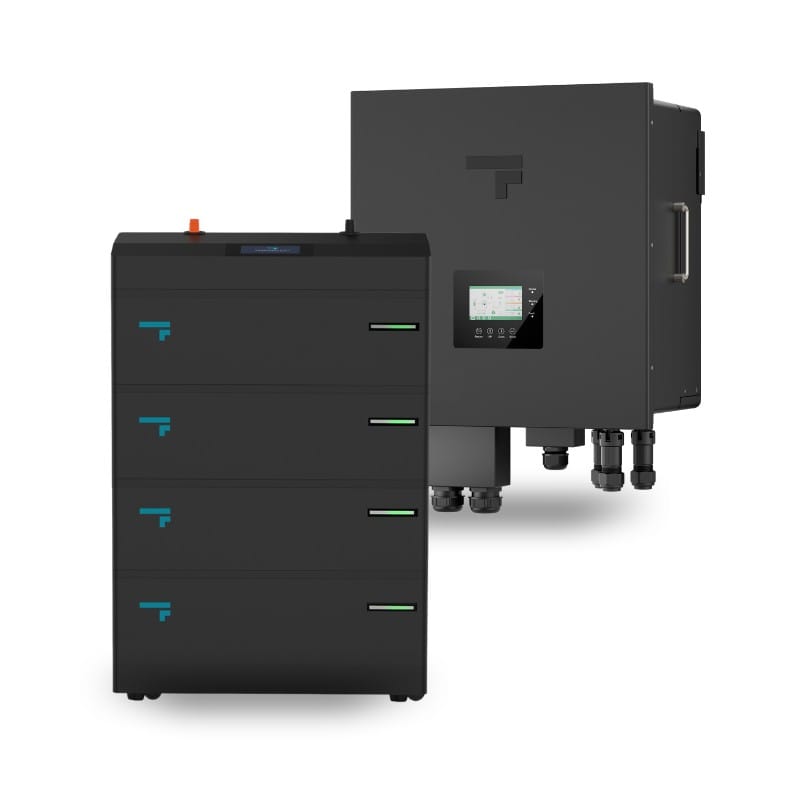

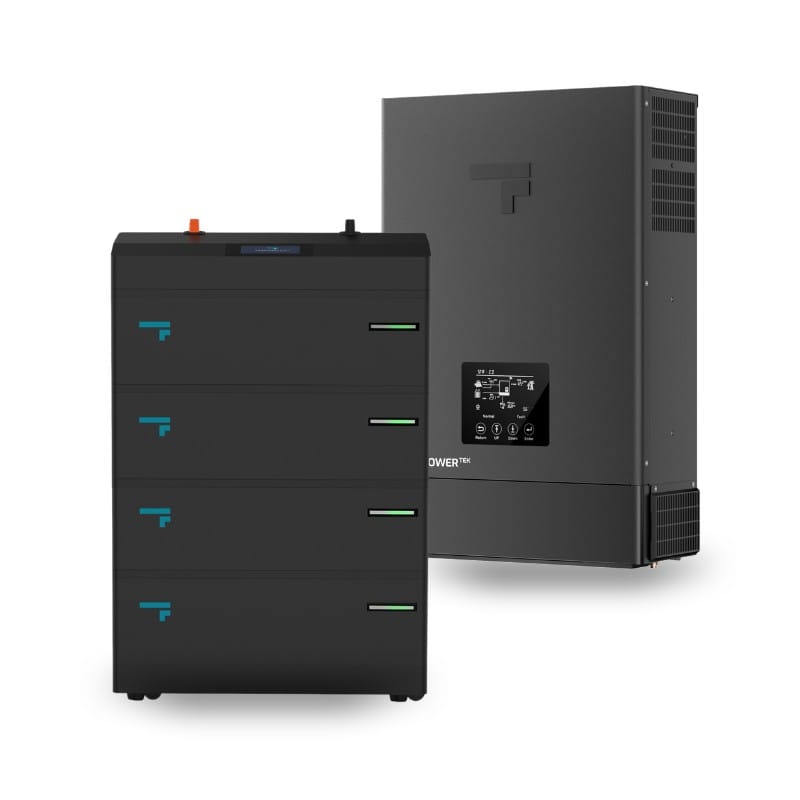

Choose Your Inverter

Choose from five inverters to complete the installation:

• 3.6kW Hybrid – a compact single-phase hybrid unit suited to smaller homes, pairing solar input, battery charging and mains backup in one box.
• 10kW Hybrid – a high-output single-phase hybrid for bigger households and light commercial use, with generator input for extra resilience.
• 6kW Off-Grid – a dependable off-grid unit for cabins, workshops and remote buildings with no mains connection.
• 14kW Off-Grid – a heavy-duty off-grid unit for larger properties running entirely without a grid supply.
• 20kW Three Phase Hybrid – a three-phase hybrid designed for commercial premises and homes with a three-phase supply.

Where It Fits

Aimed at industrial and agricultural sites, commercial premises and the biggest off-grid estates: anywhere daily consumption would exhaust a smaller battery before breakfast.
